Caption karaoke

When to use

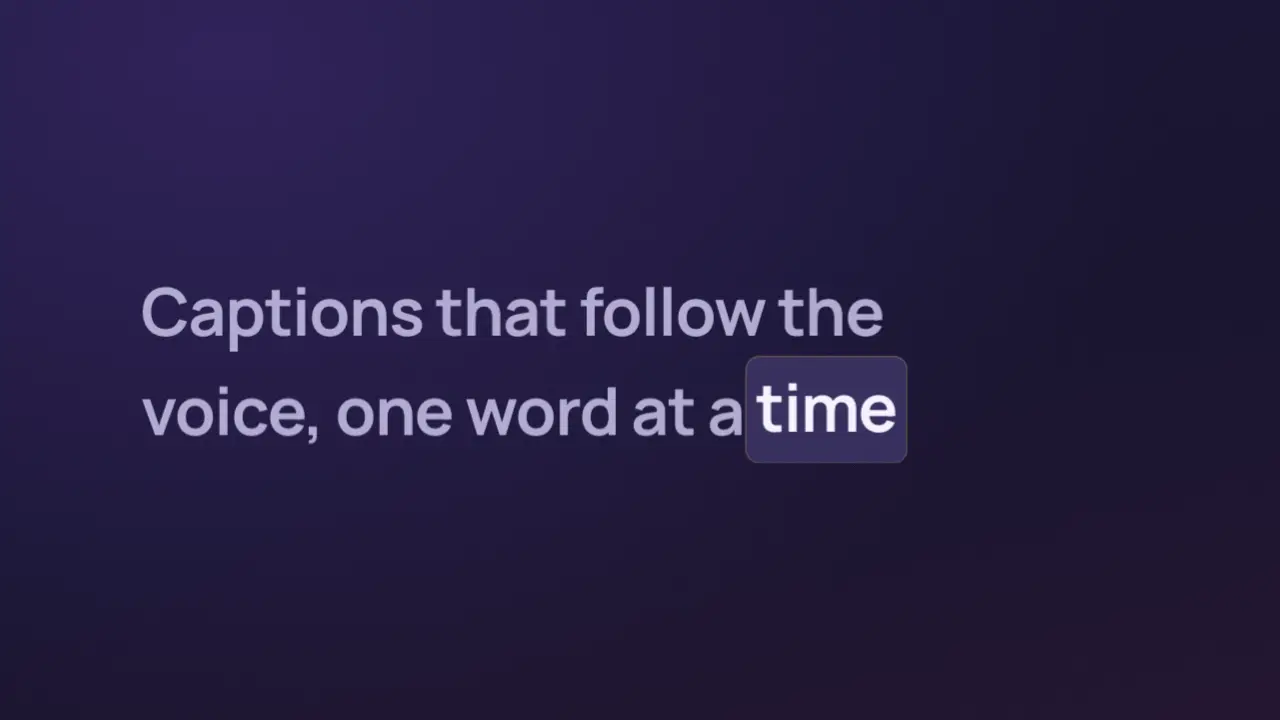

Use when a spoken line runs as captions and the eye must follow the voice: the word being said lifts to full ink and one soft pill glides from word to word on the speech timing. The line never re-wraps and no word moves except the small lift. Clip: caption-karaoke.mp4. Demo: demo/caption-karaoke.html.

The code

// [seconds the word starts, word index]: the speech timing, one table, edited in place
const SPOKEN = [[0.3, 0], [0.7, 1], [0.95, 2], [1.2, 3] /* ... */];
const box = (el) => ({ x: el.offsetLeft - pad, y: el.offsetTop - padY, w: el.offsetWidth + 2 * pad, h: el.offsetHeight + 2 * padY });
const frames = [{ offset: 0, ...at(box(spans[0])), easing: 'linear' }];
SPOKEN.forEach(([t, i], n) => {
  if (n === 0) return;
  frames.push({ offset: t / END, ...at(box(spans[SPOKEN[n - 1][1]])), easing: EASE.land });   // hold, then glide
  frames.push({ offset: (t + 0.14) / END, ...at(box(spans[i])), easing: 'linear' });
});
pill.animate(frames, { duration: END * 1000, fill: 'both', easing: 'linear' });
// each word: muted -> ink with a 0.05em lift on its second, back to muted when the next word starts
spans[i].animate([{ color: MUTED, translate: '0 0', easing: EASE.land }, { offset: .., color: INK, translate: '0 -0.05em' }, ...], { delay: (t - 0.04) * 1000, duration, fill: 'both' });
// enter(cap, ...) and leave(cap, { end }) from core/motion/presets.js

Easing and timing

The clip runs 3.4 s. The look is dusk.

The clip uses one named ease from core/motion/presets.js. Each is a pair of After Effects handles: influence is how far along the segment the handle reaches, and speed is how fast the value moves at the key, as a multiple of the segment's average speed. Motion in the docs explains both.

Notes

.cap { position: relative; isolation: isolate; color: var(--muted); }
.w { display: inline-block; }
.pill-bg { position: absolute; left: 0; top: 0; z-index: -1; border-radius: var(--r3); background: var(--hover); }

The numbers that make it look expensive

• The pill takes 0.14 s to glide and then holds. On an expo-out curve it arrives in the first third, so it is already under the word when the word lifts.
• Muted text is the rest state (4.5:1 or more on the ground), full ink is the current word. The pill is a tint of the surface ladder, not an accent block, so the text keeps its contrast.
• The pill is 0.16em wider than the word on each side, so it never covers the space and a neighbour.
• Position with offsetLeft and offsetTop, not getBoundingClientRect: the caption itself is mid-entrance and scaled, and the offsets ignore transforms.
• Wait for document.fonts.ready before measuring, or the pill lands where the fallback font put the words.

The common mistake

Moving the pill by a per-word setTimeout or by a [left, width] tween that restarts per word. Both drift off the speech. One keyframe list on one animation, with offsets from the SPOKEN table, keeps the pill in step with the seek.

Looks (ground, type, radius, accent) live in demo/demo.css; this snippet keeps neutral tokens.

Sound

Sound: none; the voice is the sound. Cue a tick at each SPOKEN time only if the captions run without a voice.
