Moves End a film

CTA morph press

look: chrome4 scta-morph-press.md

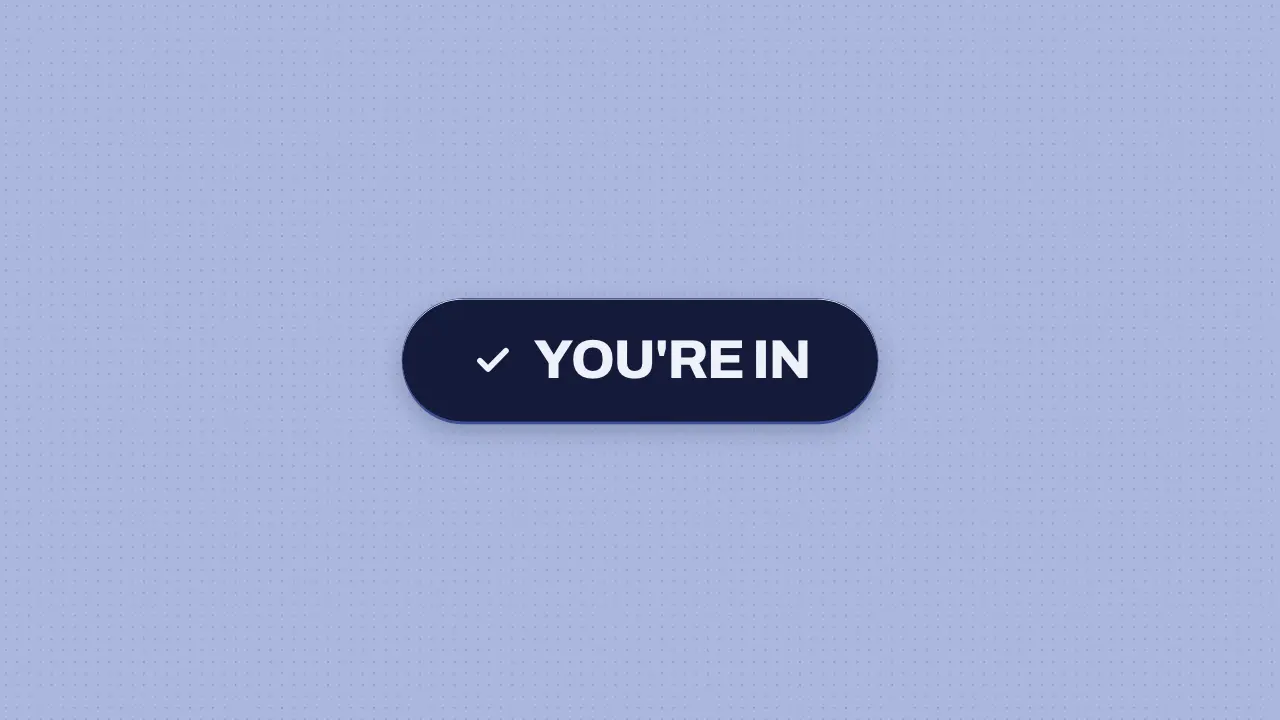

CTA morph press: final frame of the end card animation — Tap the clip to play it.

When to use

Use when the film closes from "this is who we are" to "this is what you do": one brand plate changes shape into a confident button (width, height and radius on one spring, the label crossfading inside), a cursor arrives on a bowed path, presses with a dip and a release spring, and the button shows the result (a confirmed state). One action, one element, no surrounding UI. Clip: cta-morph-press.mp4. Demo: demo/cta-morph-press.html.

The code

css

.morph { position: absolute; left: 50%; top: 50%; translate: -50% -50%; overflow: hidden; }   /* one element; width, height and radius are set per frame */
.lbl { position: absolute; inset: 0; display: flex; align-items: center; justify-content: center; white-space: nowrap; }   /* plate, go and ok labels stacked */

Easing and timing

The clip runs 4 s. The look is chrome.

The clip uses 4 named eases from core/motion/presets.js. Each is a pair of After Effects handles: influence is how far along the segment the handle reaches, and speed is how fast the value moves at the key, as a multiple of the segment's average speed. Motion in the docs explains both.

Ease	Leaving a key	Arriving at a key
`land`	12% influence, speed 4.8	75% influence, speed 0
`landSoft`	20% influence, speed 2.5	75% influence, speed 0
`pop`	12% influence, speed 4.8	35% influence, speed -1.5
`swap`	75% influence, speed 0	75% influence, speed 0

Notes

js

import { spring } from '../../core/motion/springs.js';
import { easeFn } from '../../core/motion/presets.js';
const at = { morph: 0.9, go: 1.25, arrive: 2.25, down: 2.35, release: 2.5 };   // seconds
const plate = { w: 80 * u, h: 36 * u, r: cardRadius }, button = { w: 66 * u, h: 17 * u, r: 8.5 * u };   // u = frame height / 100

vawe.onFrame((t) => {
  // one pop drives all three; the radius follows, so the plate is the button at every frame between
  const m = easeFn('pop')(clamp((t - at.morph) / 0.7));
  el.style.width = `${lerp(plate.w, button.w, m)}px`;
  el.style.height = `${lerp(plate.h, button.h, m)}px`;
  el.style.borderRadius = `${Math.max(0, lerp(plate.r, button.r, m))}px`;
  // colour follows later than size, and the labels swap one after the other, never both at half opacity
  plateLabel.style.opacity = 1 - seg(t, at.morph, at.morph + 0.3);
  goLabel.style.opacity = seg(t, at.morph + 0.5, at.morph + 0.8) * (1 - seg(t, at.release, at.release + 0.1));
  okLabel.style.opacity = seg(t, at.release + 0.1, at.release + 0.28);

  // the press: a fast dip, then a spring back that overshoots a little
  const pressed = seg(t, at.down, at.down + 0.09) - spring(t - at.release, 300, 13);
  el.style.scale = 1 - pressed * 0.04;

  // the cursor rides a quadratic bow and decelerates onto the label, dips with the button and leaves
  const [x, y] = bezier(start, bow, target, seg(t, at.go, at.arrive, easeFn('landSoft')));
  cursor.style.translate = `${x}px ${y + pressed * 0.9 * u}px`;
  cursorSvg.style.scale = 1 - pressed * 0.16;
});

The button is a real size (about 66 by 17 units, a third of the frame wide), never a chip beside the plate. Radius, width and height share one pop, so nothing pops; the colour change starts after the size change so the plate is never a muddy half-colour. The two button labels swap in sequence. The release stays a physical spring (spring(t, 300, 13)): no EASE segment rings back past the press. The bow comes from the quadratic control point, and land on the parameter makes the cursor decelerate into the press. The result (a check and "You're in" on the dark paper colour) is what makes the press read as a product moment. Keep one focal point: the cursor leaves before the hold.

Looks (ground, type, radius, accent) live in demo/demo.css; this snippet keeps neutral tokens.

Sound

Sound: droplet at 2.35 s into the move, on the press (default gain); nothing on the morph or the approach.
