Spin rotation

When to use

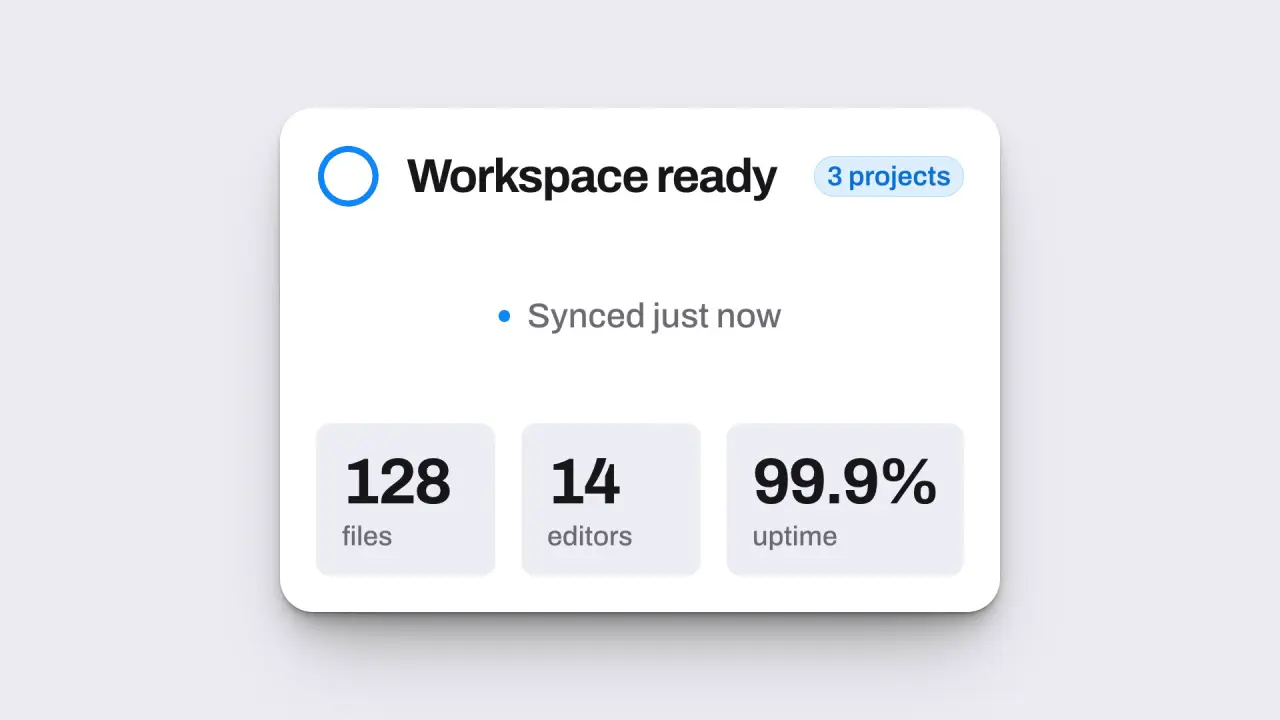

Use when a loading screen hands over to the loaded one and the spinner is on screen: the spinner keeps turning, the arc's leading edge sweeps round like a radar hand and uncovers the next screen behind it, and the camera rolls with the turn and comes back to level as the new screen settles. One angle runs the move: the spinner, the reveal and the roll all read from it. Clip: spin-rotation.mp4. Demo: demo/spin-rotation.html. Not spin-transition, which rolls the whole frame 90 degrees across a cut and needs no spinner.

The code

import { easeFn } from '../../core/motion/presets.js';
const land = easeFn('land');
const OMEGA = 330, T0 = 0.5, T_C = 1.7, D2 = 0.8;                  // deg/s, sweep starts, brake starts, brake length
const ROLL = { at: 0.9, dur: 1.5, deg: 7 };                        // one roll out and back to level, the way the spinner turns
const smooth = (k) => k * k * (3 - 2 * k);
const head = (t) => (t < T_C ? OMEGA * t : OMEGA * T_C + (OMEGA * D2 / 4.8) * land(clamp((t - T_C) / D2)));   // land starts at 4.8 x its average: 330
const roll = (t) => ROLL.deg * Math.sin(Math.PI * smooth(clamp((t - ROLL.at) / ROLL.dur)));   // 0 at both ends, zero speed at both
const own = (t) => head(t) - roll(t);                              // screen angle of the arc = own + roll, so it never jumps
// world.style.transform = `rotate(${roll(t)}deg)`; ring.style.transform = `rotate(${own(t)}deg)`
// B's plane is clipped to the wedge from own(T0) to own(t): polygon(centre, points on a circle of radius 3 W)

Easing and timing

The clip runs 3.2 s. The look is vawe.

The clip uses one named ease from core/motion/presets.js. Each is a pair of After Effects handles: influence is how far along the segment the handle reaches, and speed is how fast the value moves at the key, as a multiple of the segment's average speed. Motion in the docs explains both.

Notes

The angle that matters is the arc's angle on screen. It is own + roll, and the roll starts and ends at zero speed, so the sum has the same speed before and after the roll begins (330 degrees a second); then EASE.land brakes it from that same speed (its first frame moves at 4.8 times its average, so the brake covers OMEGA * D2 / 4.8 = 55 degrees). The wedge starts at the arc's leading edge at T0 and needs 360 degrees, so it closes while the spinner is still at full speed, 1.1 s later; the braking turn is only the ring settling, never a slow reveal. The ring then flies to the header and becomes its mark: one shared element, no fade.

Roll 5 to 8 degrees, clockwise with the spinner, then back to level; a screen that holds at 14 degrees reads as a mistake. Give the new screen a light ground and a light card, so the wedge edge against the dark loader is clear, and keep the middle of the card free for the ring until it flies to the mark: the ring then closes to a full circle. Both planes are larger than the frame (inset: -50%), so the roll never shows a corner. A sweep needs motion blur or the hard edge strobes at 5.5 degrees a frame: stack 8 copies of the world at shutter times, as in spin-transition, and show one copy when nothing moves.

Looks (ground, type, radius, accent) live in demo/demo.css; this snippet keeps neutral tokens.

Sound

Sound: none; the turn is the cue, and the settled screen takes its own entrance sound.
