85Pan stations

When to use

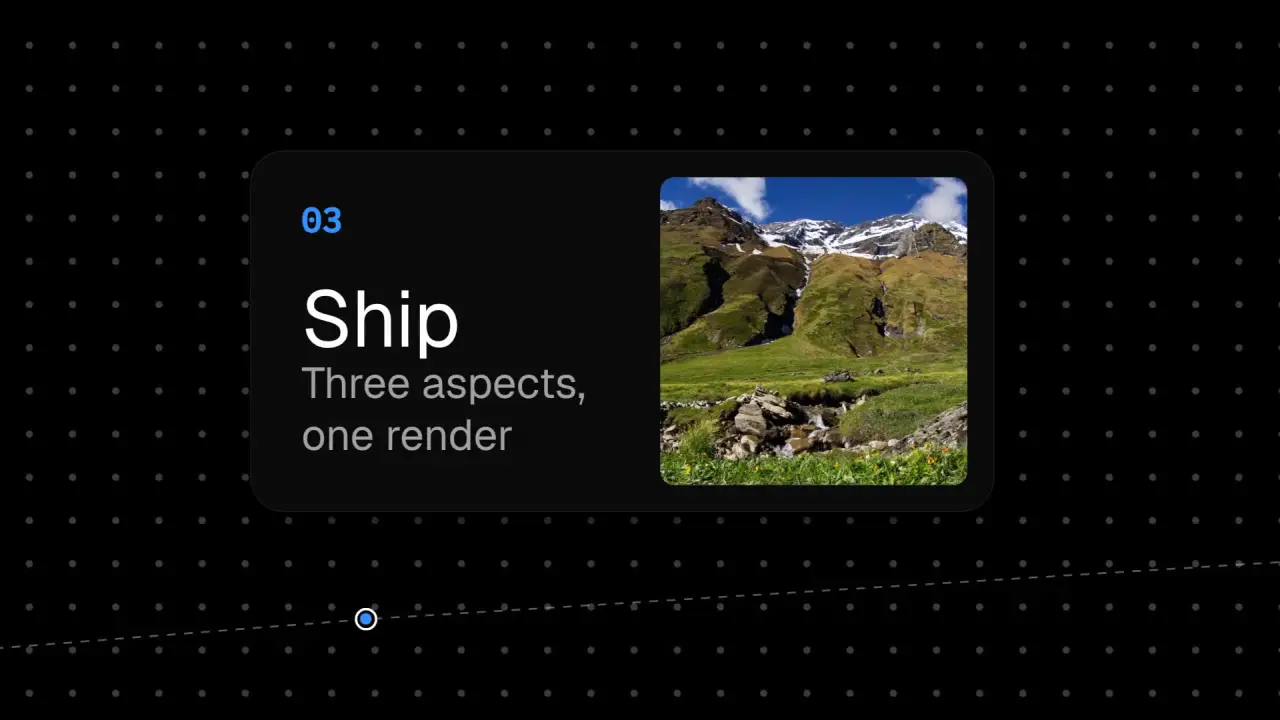

Use when three to six steps or features should read as one continuous place, with no cuts: they sit on one wide canvas, and the camera pans from station to station and holds at each. The detail that sells the space is what lies between the stations: a dashed rail runs node to node under the cards and past both ends, a dot grid behind moves at 55 percent of the camera (parallax), and each node lights as the camera arrives. Without them the pans read as slides pushed sideways.

The code

import '../../core/engine/page-api.js';
const vw = innerWidth / 100, vh = innerHeight / 100;
const at = [{ x: 50, y: 50 }, { x: 150, y: 58 }, { x: 250, y: 44 }];   // station centres on the canvas, vw and vh
const PANS = [0.5, 1.2], PAN = 0.42, DRIFT = 0.8;                       // pan starts (s), pan length (s), drift (vw per s)
const inout = easeFn('settle');                // no jolt at either end
const clamp = (u) => Math.min(1, Math.max(0, u));
const cam = (t) => {
  let k = 0;
  PANS.forEach((s) => { k += inout(clamp((t - s) / PAN)); });           // k: 0 at station 1, 1 at station 2, ...
  const i = Math.min(at.length - 2, Math.floor(k)), f = k - i;
  return { x: at[i].x + (at[i + 1].x - at[i].x) * f + DRIFT * t, y: at[i].y + (at[i + 1].y - at[i].y) * f };
};
vawe.onFrame((t) => {
  const c = cam(t), n = cam(t + 1 / 60);
  const tx = (50 - c.x) * vw, ty = (50 - c.y) * vh;
  world.style.transform = `translate(${tx}px, ${ty}px)`;
  far.style.transform = `translate(${tx * 0.55}px, ${ty * 0.55}px)`;
  blur.setAttribute('stdDeviation', `${Math.abs(n.x - c.x) * vw * 0.35} 0`);   // #motion feGaussianBlur on .world
});

Easing

Each ease is a pair of After Effects handles from core/motion/presets.js. Every curve as CSS.

Notes

A pan of 0.42 s over one frame width is fast enough to feel like one space and slow enough to stay readable mid-pan; under 0.3 s it becomes a whip pan. Step the stations up and down a little so the pans are not one flat rail, and let the camera drift slowly through the holds so a held station is never a still. In a film, hold each station for its text (words x 0.6 s, at least 1.2 s); the demo holds shorter to show the move in 2 s.

Looks (ground, type, radius, accent) live in demo/demo.css; this snippet keeps neutral tokens.

Sound

Sound: pluck at 0.92 s and at 1.62 s into the move, when each node lights on the camera’s arrival (default gain); nothing on the pans.
