Hand drawn notes

When to use

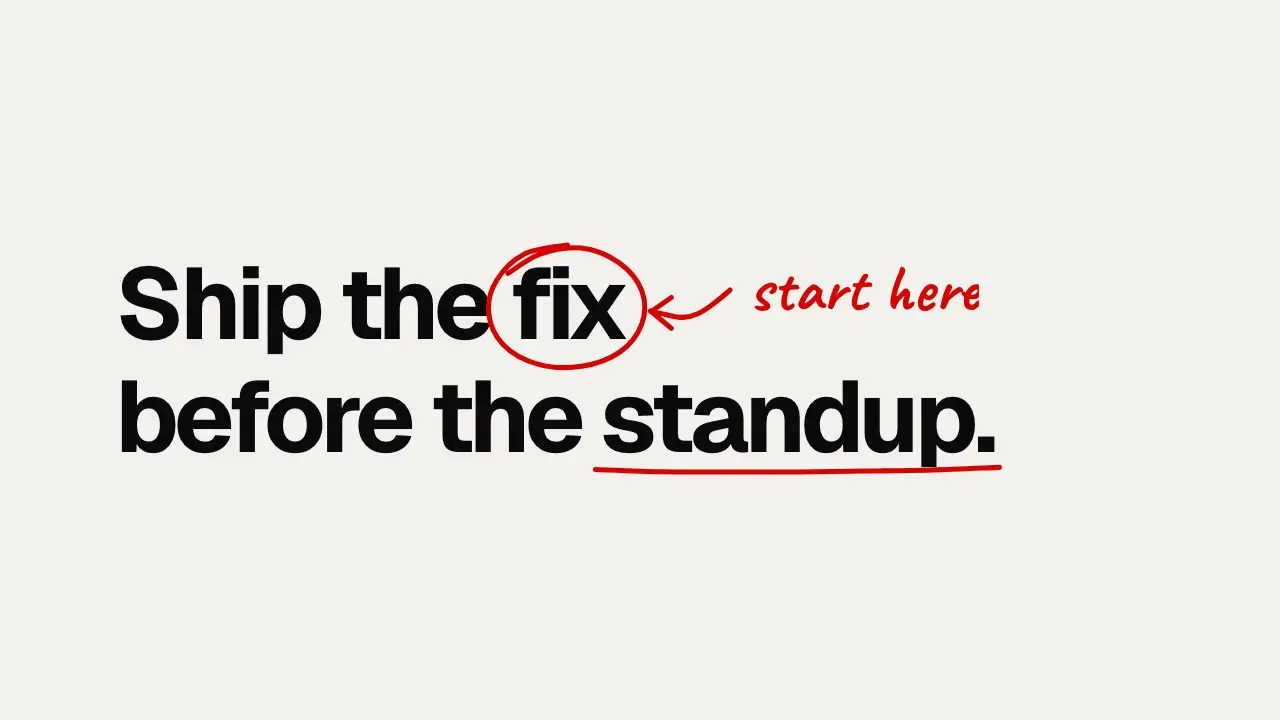

Use when a held line needs the margin notes of a person: a loose circle around one word, an arrow from a written label to it, and an underline under another, each drawn on like a pen. Every stroke is an SVG path revealed with stroke-dashoffset, built with a seeded wobble, so the marks are uneven and the same on every render. Clip: hand-drawn-notes.mp4. Demo: demo/hand-drawn-notes.html.

The code

const rand = rng(7);                                  // core/motion/springs.js: seeded, never Math.random
const wob = (amount) => (rand() * 2 - 1) * amount;
// a circle of 1.06 turns whose radius drifts out 7 percent, so the end overshoots the start
const ring = Array.from({ length: 14 }, (_, i) => {
  const a = -2.5 + (i / 12) * Math.PI * 2 * 1.06, grow = 1 + (i / 13) * 0.07 + wob(0.025);
  return [cx + Math.cos(a) * rx * grow, cy + Math.sin(a) * ry * grow];
});
function stroke(d, at, dur, easing) {                 // d: Catmull-Rom points written as cubic Beziers
  const p = document.createElementNS(NS, 'path');
  p.setAttribute('d', d); p.setAttribute('pathLength', '1');
  svg.append(p);
  p.animate([{ strokeDashoffset: 1 }, { strokeDashoffset: 0 }], { delay: at * 1000, duration: dur * 1000, easing, fill: 'both' });
}
stroke(smooth(ring), 0.45, 0.6, EASE.settle);
label.animate([{ clipPath: 'inset(-10% 100% -10% 0)' }, { clipPath: 'inset(-10% 0 -10% 0)' }], { delay: 1100, duration: 450, fill: 'both' });

Easing and timing

The clip runs 2.8 s. The look is swiss.

The clip uses 2 named eases from core/motion/presets.js. Each is a pair of After Effects handles: influence is how far along the segment the handle reaches, and speed is how fast the value moves at the key, as a multiple of the segment's average speed. Motion in the docs explains both.

Notes

svg path { fill: none; stroke: var(--accent); stroke-linecap: round; stroke-dasharray: 1; stroke-dashoffset: 1; }
.label { font: 700 9vh/1 'Caveat', cursive; color: var(--accent); }

The numbers that make it look expensive

• Order is the story: circle (0.6 s), then the label writes on (0.45 s) while the arrow draws from it to the circle (0.35 s) and its head flicks in (0.2 s), then the underline (0.45 s). Strokes overlap by a third.
• A pen starts slow, runs, and stops: EASE.settle for the long strokes, EASE.landSoft only for the arrow head.
• The wobble is small and seeded: 2.5 percent of the radius on the circle, 1 percent of the font size on the shaft. More reads as a bad drawing, none as a vector ellipse.
• The circle overshoots its start by 6 percent of a turn: a closed circle is a shape, an overlapped one is a gesture.
• The label is written on a hard left-to-right clip, not a fade, and sits in a handwriting face (Caveat) against the sans line. One accent colour for every mark, 4.5:1 on the ground.
• Underline under the descender line of the word, as in underline-draw.md, with a slight sag.

The common mistake

Using Math.random for the wobble, or a fresh draw per frame: the strokes shiver and no two renders match. Seed once at load. Also draw the marks after the line has landed; strokes on a moving word slip off it.

Looks (ground, type, radius, accent) live in demo/demo.css; this snippet keeps neutral tokens.

Sound

Sound: none; or a dry pen scratch under each stroke, as a short recorded effect.
